🌟 GSA: Geometric Sparse Attention for Efficient Inference of LLMs#


License Python

🔍 Overview#

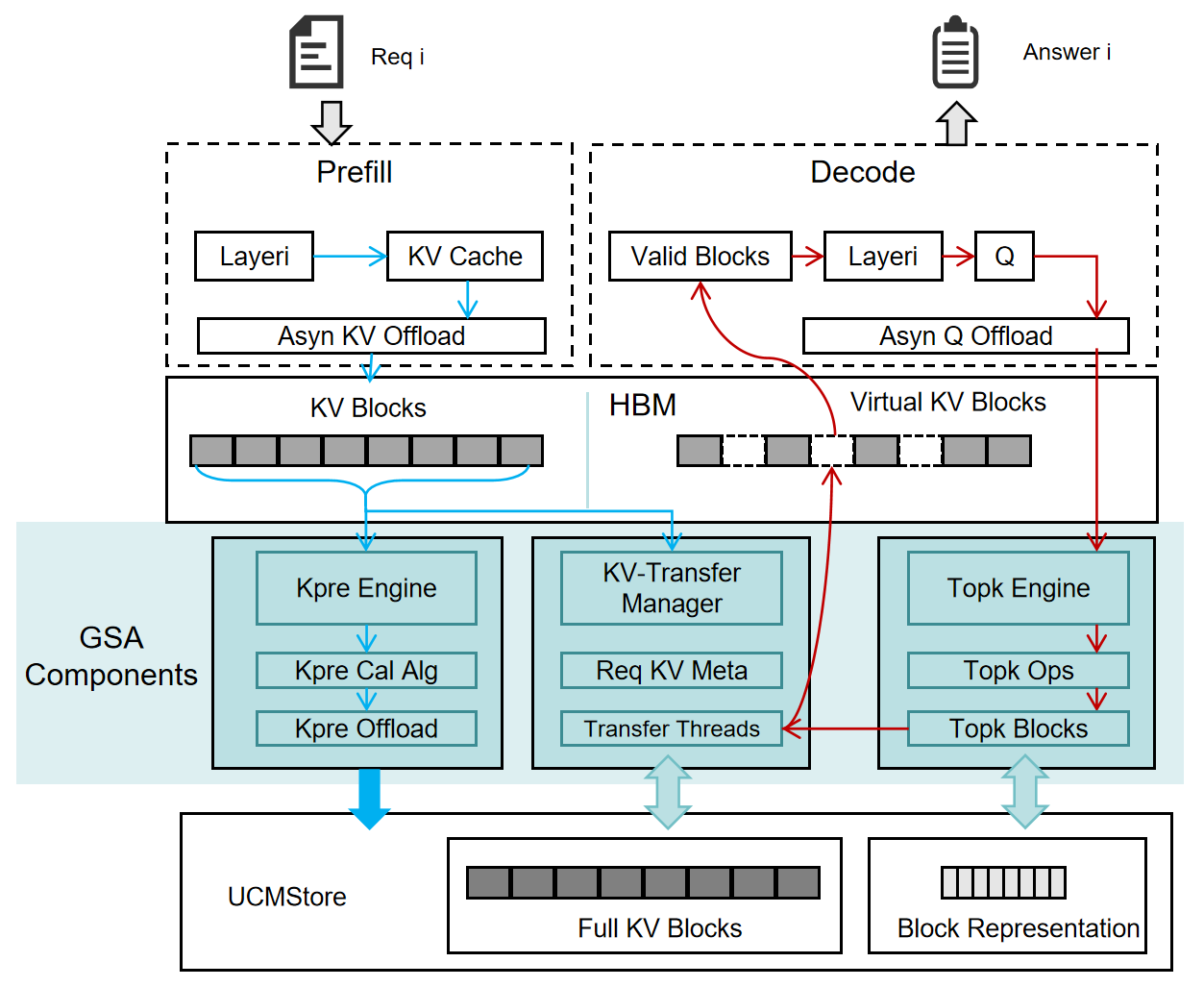

GSA (Geometric Sparse Attention) simultaneously tackles the high computational complexity of long sequences and the concurrency limitations imposed by the HBM capacity wall. UCM GSA aims to develop a sparse framework compatible with mainstream inference engines, incorporating sparse representation algorithms, offloading and prefetching mechanisms, and collaborative XPU-CPU execution.

🎯 Key Innovations#

  • Representation-based Sparse Selection✅: To reduce the complexity of sparsity selection, we introduce a lightweight Sparsity Selector that pre-computes per-block representational scores during the Prefill phase and reuses them for zero-overhead top-k pruning in the Decode phase.

  • Cross-hardware Support✅: To ensure cross-platform portability of GSA across heterogeneous accelerators (e.g., NVIDIA GPUs and Huawei Ascend NPUs), we introduce a Top-K offloading engine that asynchronously offloads attention queries (Q) to CPU memory for decoupled sparse selection computations.

  • Efficient KV Transition⌛: We have designed a PrefetchEngine to orchestrate KV-cache offloading and prefetching, incorporating three key components: (1) sparse-block metadata management, (2) asynchronous prefetch worker threads, and (3) adaptive prefetch algorithms.

  • Request-level Sparse Strategy（Not yet supported ❎）: We plan to design a sparse-policy module that, for every incoming request, perform a fast distribution estimation and then decides the optimal sparsification strategy.

  • P+D Multi-stage Sparsity（Not yet supported ❎）: We plan to introduce layer-wise sparsification in the pre-fill stage to reduce TTFT for workloads with short decode lengths.

🔥 Key Results#

In both performance and accuracy evaluations, we deployed the DeepSeek-R1-Distill-Qwen-32B model on two H20 GPUs.

🏆 Performance Highlights#

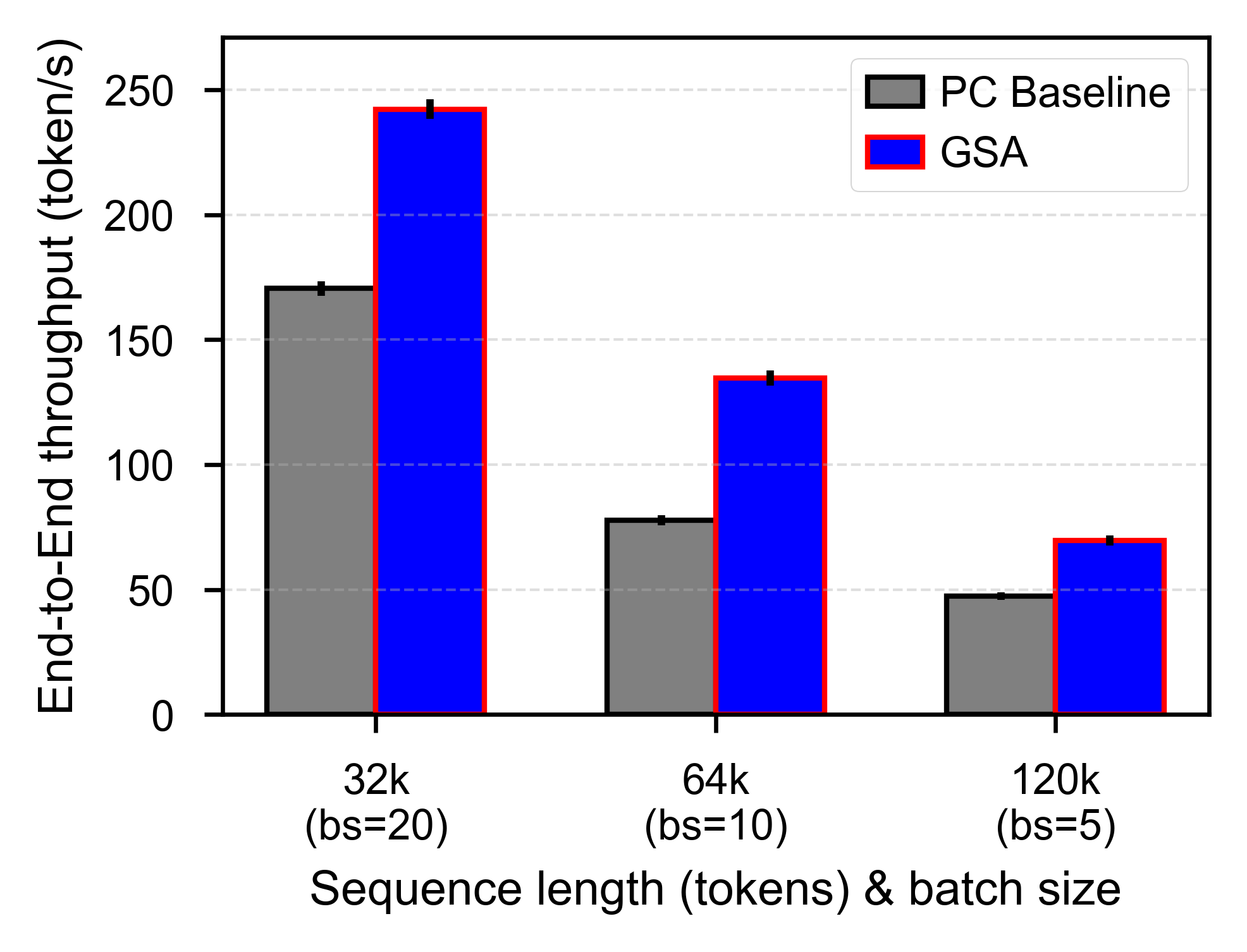

End-to-End Performance with 80 % Prefix-Cache Hit Ratio#

Below are the end-to-end throughput results for inference scenarios without KVCache offloading. PC Baseline refers to the full attention method with an 80% prefix cache hit rate. The GSA method sparsifies each input request to 6K tokens, and in the experiments, each request generates 4K tokens of output.

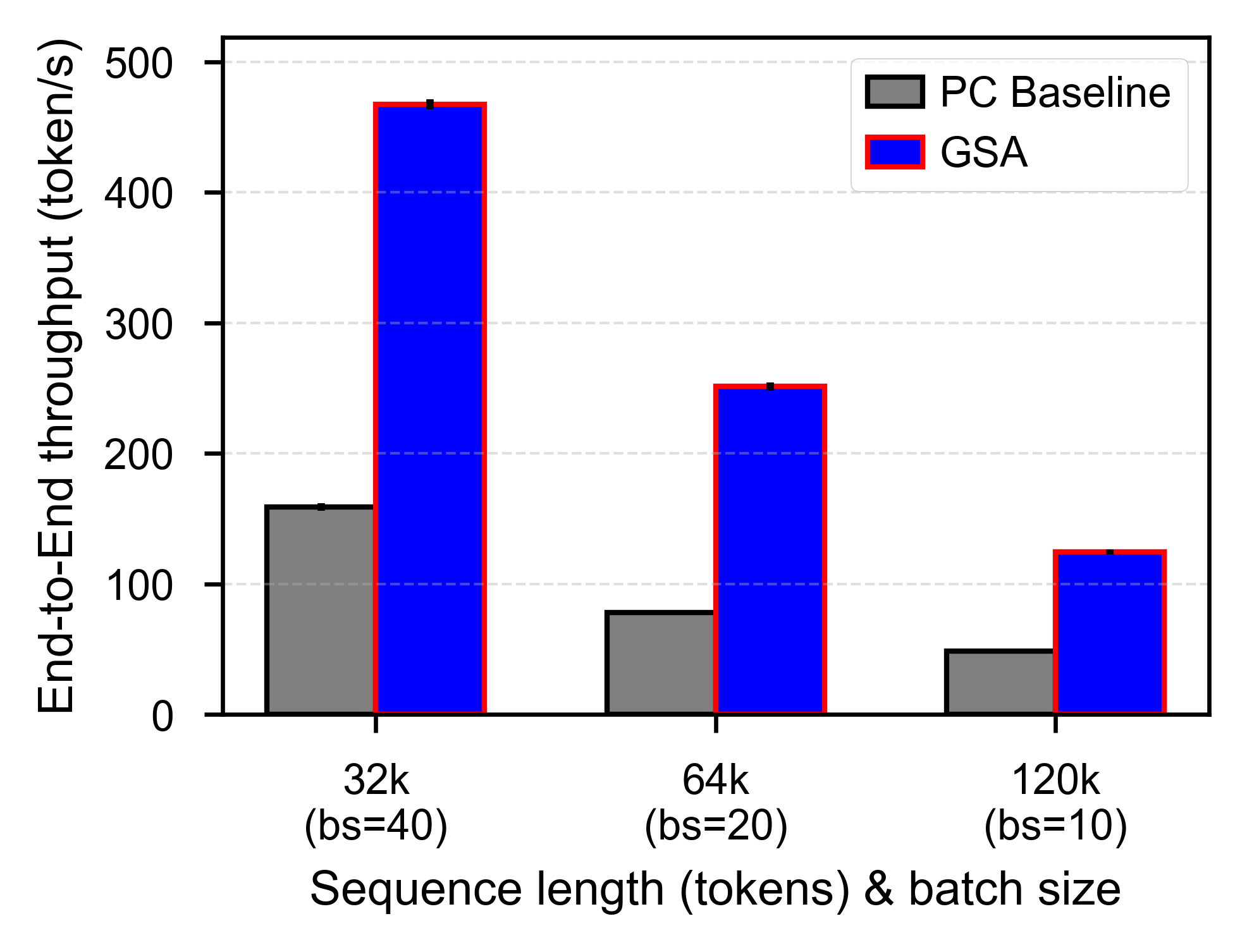

End-to-End Performance with 80 % Prefix-Cache Hit Ratio (HBM-bound scenario)#

Below are the end-to-end results of boosting inference concurrency through KV-Cache off-loading and prefetching under HBM-bound workloads; please note that this feature is not yet fully supported in the current open-source release, and we will make it available as soon as possible.

📈 Accuracy Benchmarks#

Inference Accuracy with Various Tasks#

As shown in the table below, we evaluated full attention and the GSA algorithm across multiple datasets for single-document QA, multi-document QA, and summarization tasks. The GSA method employs a mean-based block representation along with q-offloaded CPU top-k computation. In this experiment, we select requests longer than 4k from the datasets and set the sparsification ratio to 30%.

Dataset NarrativeQA MFQA_ZH HotpotQA DuReader_ZH GovReport VCSUM_ZH Average
Full Attention23.0154.9739.824.8624.4515.1330.37
GSA(Mean) 22.4252.9536.9924.3223.2814.429.06

🚦 Quick Start#

Basic Usage#

Similar to UCM’s offline_inference_esa.py examples. We only need to specify ucm_sparse_method to be GSA as shown below.

...
ktc = KVTransferConfig(
    kv_connector=name,
    kv_connector_module_path="ucm.integration.vllm.ucm_connector",
    kv_role="kv_both",
    kv_connector_extra_config={
        "ucm_connector_name": "UcmNfsStore",
        "ucm_connector_config": {
            "storage_backends": kv_store_path,
            "transferStreamNumber":16
        },
        "ucm_sparse_config": {
            "GSA": {}
        }
    }
)
...

Thus, an example command for launching the online LLM service is as follows:

export ENABLE_SPARSE=TRUE

vllm serve /home/models/DeepSeek-R1-Distill-Qwen-32B \
--served-model-name DeepSeek-R1-Distill-Qwen-32B \
--max-model-len 131000 \
--tensor-parallel-size 2 \
--gpu_memory_utilization 0.87 \
--trust-remote-code \
--port 8090 \
--block-size 128 \
--no-enable-prefix-caching \
--kv-transfer-config \
'{
    "kv_connector": name,
    "kv_connector_module_path": "ucm.integration.vllm.ucm_connector",
    "kv_role": "kv_both",
    "kv_connector_extra_config": {
        "ucm_connector_name": "UcmNfsStore",
        "ucm_connector_config": {
            "storage_backends": kv_store_path,
            "transferStreamNumber":16
        },
        "ucm_sparse_config": {
            "GSA": {}
        }
    }
}'

📊 Supported Models#

Model

Size

Support

Qwen3-14B

14B

✅

DeepSeek-R1-Distill-Qwen-14B

14B

✅

Qwen3-32B

32B

✅

QwQ-32B

32B

✅

DeepSeek-R1-Distill-Qwen-32B

32B

✅

🤝 Contributing#

We welcome contributions! Please see our Contributing Guide for details.
